18W LED TUBE LIGHT (Frosted)

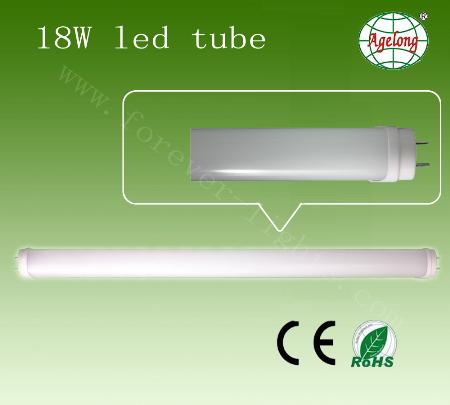

【1】Product Appearance
【A】 Built-in power supply voltage AC85－265 V input, frequency 50/60 Hz, constant current output efficiency > 87%, 0.97 > PFC, and stable performance.
【B】 Silicon wafer packaging SMD LED, Epistar chip, the color temperature range 2700-7000 K, the colour developing index Ra > 70.
【C】 # 6063 aluminum shell, flame retardant PC cover, the light transmittance > 92%, unique PCB circuit design, can replace the traditional fluorescent lamp brightness.
【D】 Fluorescent lamp without ultraviolet rays, LED flash, no frequency without noise, low power consumption, start, speed, seismic, belongs to the green lighting products.
【2】Shape Structure
Shell Material：Aluminum Alloy+PC
Shell Color：Silvery white
Weight：0.45Kg
【3】Parameter
Input Voltage | AC85～265V | Color Rendering Index | Ra＞70 |
Freqency Range | 50～60Hz | Beam Angle | ＞120° |
Power Factor | >0.97 | LED Reduction Rate | 1～3% / 1,000Hrs |
Power Efficiency | >87% | Color Temperature | 2700～7000K |
LED Power | 16W | Working Temperature | -20℃～+45℃ |
Total Power | 18W | IP Grade | IP62 |
luminous flux | 1600lm | Working Life-span | >35000H |
Luminous Efficiency | 90～100lm / W | LED QTY. | 300PCS |
【4】Diagram of degradation for Luminous
1、The data above has been got at a temperature of 25 celsius degree and taking 1000 hours running by a nonstop way.
2、Degradation of luminous flux of LED lamps depends on environmental conditions. The higher the temperature, the longer the using time, the faster luminous flux drops.
【5】Photomatric Data

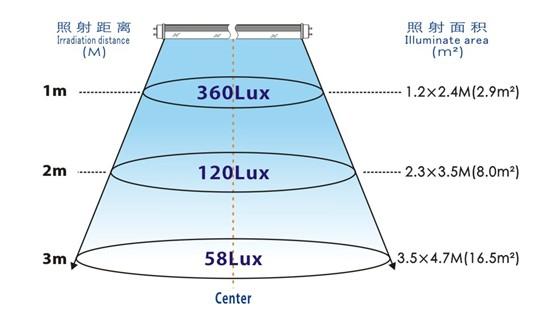

【6】Illumination Distance/illuminance/Irradiated Area
【7】Packing specification
Packing Dimension：L）536×(W)274×(H)1286mm 50PC/CTN 30Kg
【8】Using and installing instructions
a. Conventional Installation
As the chart shows, LED lamp on both ends of the direct access to AC85-265 V within the scope of the voltage, frequency 50/60 Hz, after electrify tubes work normally.
b. Replacing conventional fluorescent tube
Replace traditional fluorescent lamp, need to take the rev. Hui is divided, then a short circuit, then LED lamp ballast can load fixtures are normal use.
【1】Traditional fluorescent lamp by law
【2】LED by tube method
Attentions：
Installation only allow professional electrician operation, before you install please check lamps and lanterns for abnormal. Detailed
Please press the installation process with the product description, correct wiring way, forbidden charged operation
