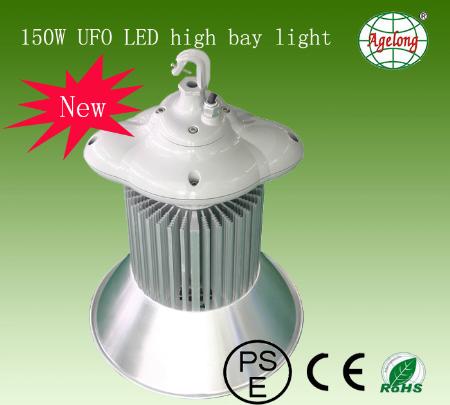

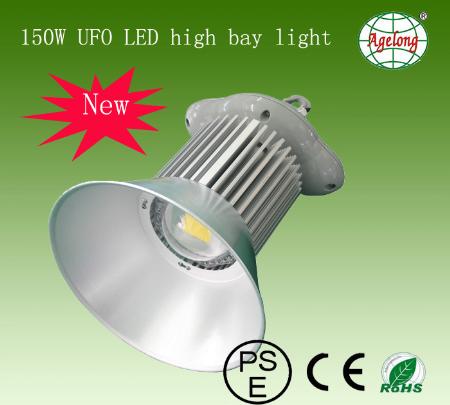

150W LED High Bay Light
【1】Product Descriptions:
a.Patented appearance design, wide heat dissipation surface, good thermal conductivity, impact strength of power pack meets requirements of anti-explosion standard.
b. Dedicated high power integrating LED, Luminous efficiency up to 70~80LM/W,CRI>80Ra.
c. Reasonable heating dissipation design, high power can up to 200W.,Juction temperature is less than 85℃,lifespan is more than 35,000 hours.
d. Pretty appearance without dirt retention, Gives a good protecting rate:IP65,High efficiency power supply which can pass several certificates with input voltage:100~277VAC.
【2】Shape Structure
Shell Material：Aluminum Alloy
Shell Color：hoar/ Black
Weight：12Kg
【3】Parameter
| Input Voltage | AC90～264V | Color Rendering Index | Ra＞80 |
| Frequency Range | 50～60Hz | Beam Angle | ＞100° |
| Power Factor | >0.97 | LED Reduction Rate | 1～3% / 1,000Hrs |
| Power Efficiency | >87% | Color Temperature | 2700～7000K |
| LED Working Voltage | DC30～36V | Working Temperature | -20℃～+45℃ |
| LED Power | 150W | IP Grade | IP65 |
| Total Power | 170～175W | Working Life-span | >35000H |
| Luminous Efficiency | 70～80lm / W | Power line | VDE 3×1.0mm2 |
| Connect wire | Brown→L | Blue→N | Yellow or Green→G |
【4】Diagram of degradation for Luminous
a.Thedataabovehasbeengotatatemperatureof25celsiusdegreeandtaking1000hoursrunningbyanonstopway.
b. DegradationofluminousfluxofLEDlampsdependsonenvironmentalconditions.Thehigherthetemperature,the longertheusing time,the fasterluminous flux drops.
【5】Photomatric Data
【6】Illumination Distance/illuminance/IrradiatedArea
【7】 Packing specification
Body（L）412*(W)312*(H)508mm 1PC/CTN 13.5Kg
Reflector（L）472*(W)472*(H)299mm 10PCS/CTN 4.5Kg
【8】Using and installing
- Please firstly install the reflector properly on the heat sink, and screw down.
- Then screw down the hoop into the top cap.
- Hang the body lamp on the installation site.
- Please hang the chaining steel wire on another installation device.
- Connect Live Wire/Null Wire/Ground Wire to electric cable properly and switch on.
Attentions：
a. Only professional electrician can install the lamp, please check the lamp very carefully before installation.
b. please install the lamp follow up the installation procedure, make sure the screw has been wrested very tightly, the wires have been connected properly, .Please operate according to Product Instructions enclosed.
c. Water Joint is convenient to installation, uninstallation, maintenance.
